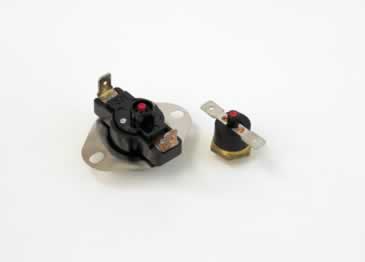

Manual Reset

IN STOCK MANUAL RESET SERIES:

A wide variety of manual reset bimetal snap action thermostats are available.

Comstat’s temperature limiting manual reset thermostats are a temperature sensitive device with normally closed contacts. The contacts open at a factory set temperature and the reset is achieved by manually pressing the button. There are many different mounting configuration, temperature set points, tolerances and terminal configurations available.

Comstats thermostats are of the highest quality and reliability and are 100% electrically tested. Some of options we offer for Snap Disc thermostats include:

  • Models with operating temperature ranges from 30 C to +170 C
  • Rated to 16 Amps at power coefficient 0.95
  • Gold contacts for very low current applications
  • Operating temperature tolerances to +/- 1
  • Various mounting and termination options
  • Enclosure protection to IP4X

Visit our Thermostat Design Configurator to select the manual reset Snap Disc thermostat for your project from our many standard mechanical configurations and electrical specification options.

we offer a variety of standard configurations that are made to order with relatively short lead times and small 250 piece annual minimum quantity commitments.

Are you an engineer working on a new project and need something fast? Let us know the details of your requirement on our sample request form and in most cases we can solve your application need from our extensive stock and ship samples the next day.

Action On Rise: Oper. Temp:  Reset
Product Name  Comstat Part Number  OEM Part Number  Min. Order Qty.  Action on Rise  Oper. Temp
1/2" Manual Reset Thermostat
TK32-60-M12-01
--
5
Open 60C +/-3C
1/2" Manual Reset Thermostat
TK32-65-M12-01
--
5
Open 65C +/-3C
1/2" Manual Reset Thermostat
TK32-70-M12-01
--
5
Open 70C +/-3C
1/2" Manual Thermostat
TK32-75-M12-01
--
5
Open 75C +/-3C
1/2" Manual Reset Thermostat
TK32-80-M12-01
--
5
Open 80C +/-3C
1/2" Manual Reset Thermostat
TK32-85-M12-01
--
5
Open 85C +/- 3
1/2" Snap Disc Thermostat
TK32-90-M12-01
--
5
Open 90C +/-3C
1/2" Snap Disc Thermostat
TK32-95-M12-01
--
5
Open 95C +/-3C
1/2" Manual Reset Thermostat
TK32-100-M12-01
--
5
Open 100C +/-3C
1/2" Manual Thermostat
TK32-105-M12-01
--
5
Open 105C +/-3C
1/2" Manual Reset Thermostat
TK32-110-M12-01
--
5
Open 110C +/-3C
1/2" Manual Reset Thermostat
TK32-115-M12-01
--
5
Open 115C +/-3 C
1/2" Manual Reset Thermostat
TK32-120-M12-01
--
5
Open 120C +/- 3C
1/2" Manual Reset Thermostat
TK32-125-M12-01
--
5
Open 125C+/- 3C
1/2" Manual Reset Thermostat
TK32-130-M12-01
--
5
Open 130C +/-3C
1/2" Manual Reset Thermostat
TK32-135-M12-01
--
5
Open 135C +/- 3C
1/2" Manual Reset Thermostat
TK32-140-M1-02
--
5
Open 140C +/-4C
1/2" Manual Reset Thermostat
TK32-150-M2-01
--
5
Open 150 C +/- 4.5C
1/2" Manual Reset Thermostat
TK32-165-M2-01
--
5
Open 165C+/- 5C
1/2" Manual Reset Thermostat
TK32-170-M2-01
--
5
Open 170C +/-5C
Displaying 1 to 20 (of 20 products) Result Pages:  1
